Online analysis system

GO-Mini-ATC

The GO-Mini-ATC – like the GO-ATC – is an online analysis system that determines, for example, the total hydrocarbon content in the air.

go-mini-atc-onlineanalysesystem

Online analysis system

Function

This method (patent no. 10 2009 017 932) can be used for the online measurement of hydrocarbons and other chemical constituents in many areas of industry and research, e.g. in the field of pure gas and breathing gas, in the chemical industry, in particular petrochemistry, ambient air monitoring, sewage treatment, etc.

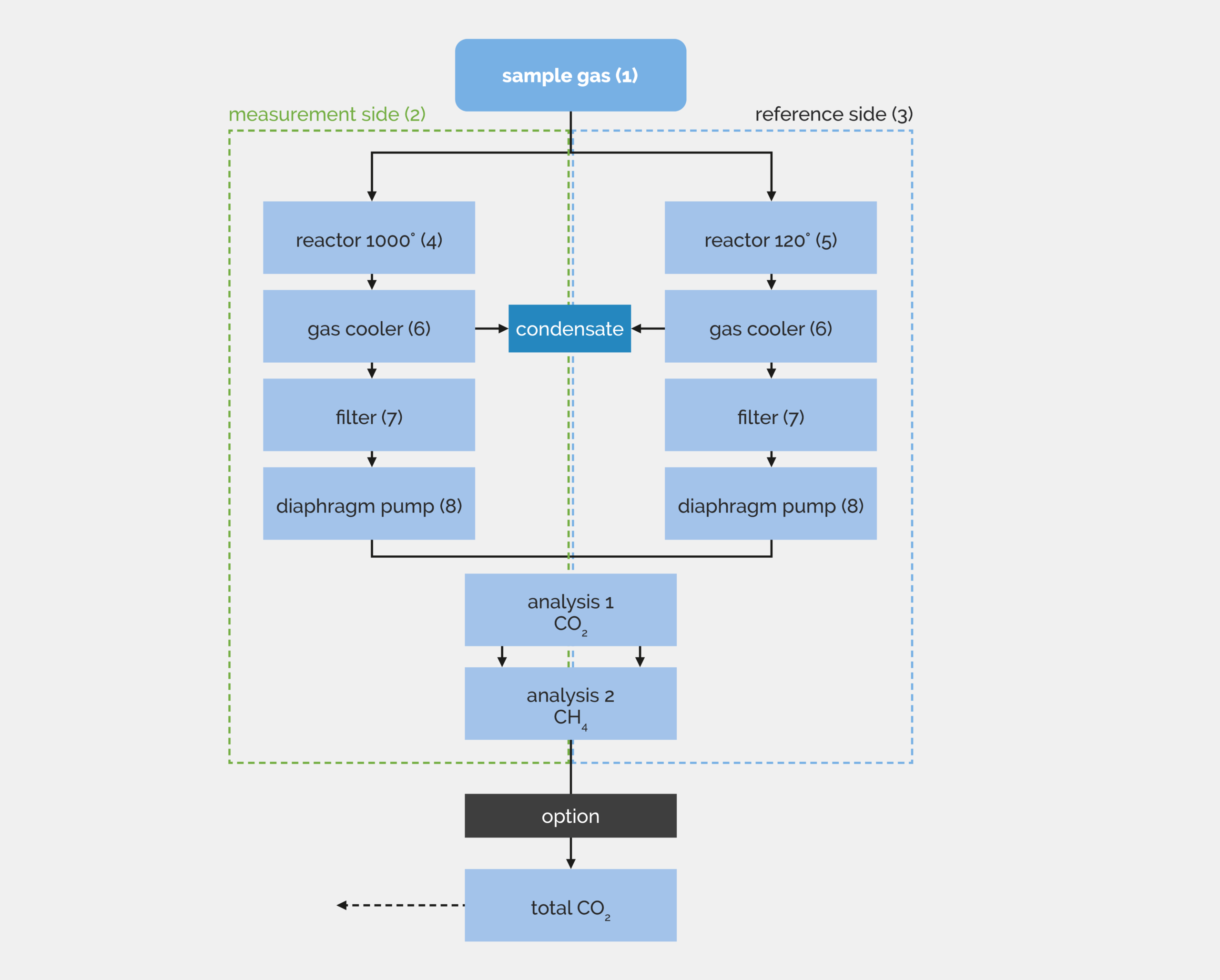

How it works

The GO-Mini-ATC (Air Total Carbon) is used to determine the total hydrocarbon content of the air (optionally also other gas components). Simultaneous online measurement of methane to determine the NMHC (None Methane Hydrocarbons) value.

Unlike conventional air measurements, the absolute value of the organically bound carbon in the gas stream is not determined, but the delta is formed from the concentrations of two gas streams.

The measured values are determined by converting the CO2 concentration in the gas streams.

Facts

Device options

  • Device for measuring absolute CO2
  • Device for measuring other gases
  • Software
  • Further options on request

Advantages

  • Continuous
  • Measured value acquisition
  • No consumables
  • No high purity gases
  • Low operating costs
  • Resolution 0.01 ppm
  • True online measurement
  • No zero air / no fuel gas
  • Remote maintenance and data retrieval via LAN are optional,
    WAN and GSM / UMTS possible
  • Non-hazardous, simple and environmentally friendly handling
  • Automatic calibration

The performance profile of the GO-Mini-ATC

NDIR gas analyser

Ultramat 6

Smallest measuring range GO-ATC

0,01 ppm

Permissible water content Sample gas

8.00 ml/l / 500 ml/h per channel

Display

LCD

Limit values

4

Output signals

0 / 2 / 4 – 20 mA / serial interface

Operating temperature of the oxidation furnace

1.000 °C

Heating time

approx. 60 min.

90% time

approx. 10 sec.

Gas cooler

GO-ATC Cooler

Feed rate raw sample

approx. 2 x 1 l min.

Power consumption

max. 350 W

Hands on connection

230 V, 50 Hz

Ambient temperature

+5 to +30 °C

Dimensions (HxWxD)

approx. 450mm x 440mm x 320mm

Weight

approx. 30 kg

Auto. 0-point adjustment

Yes / self-calibration

Materials in contact with the sample

Keramik, Glas, Viton, PVC, VA
